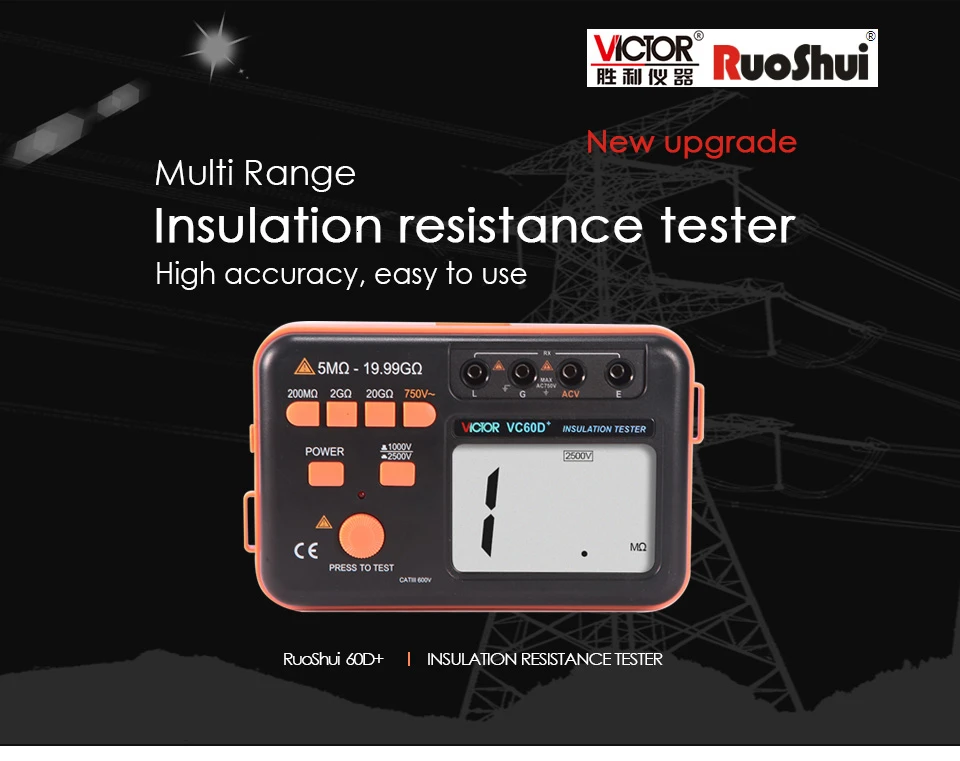

RuoShui VC60D Digital Insulation Short Circuit Tester Resistance 2500V Megger Ohm Meter Megohmmeter Electrical

2 sold in last 8 hours
RuoShui
RuoShui VC60D
50 In stock
Meghommeters - Insulation Testers
$74.51 $84.67
RuoShui VC60D+ 2500V megger insulation tester megohmmeter ohm tester insInsulation Resistance Tester insulation This professional digital insulation tester has stable performance and reliable result. It adopts the DC Voltage convetor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 1000V/2500V DC Voltage. With large...
$74.51
Terms & conditions
customers are viewing this product

RuoShui VC60D+ 2500V megger insulation tester megohmmeter ohm tester insInsulation Resistance Tester insulation

This professional digital insulation tester has stable performance and reliable result. It adopts the DC Voltage convetor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 1000V/2500V DC Voltage. With large LCD display, easy to read.

Features:
Large LCD 2000 counts display, easy to read.
Test voltage for your choice: 1000V / 2500V.
Reliable insulation resistance tester with stable performance.
Locking function of test button, wide measurement range, convenient to use.
Perfect overload protection, widely used for insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
Powered by 6 batteries(not included), with low battery indication and 750V AC voltage test.

Specifications:
Brand Name: Victor or RuoShui
Color: Black + Orange
Material: Plastic
Display: LCD Display with Backlight, 1999 (3 1/2digit)
Range Control: Manual Range
LCD Size: 80 * 52mm / 3.15 * 2.05"
Over Range Indication: Display "1"
Insulation Resistance(Ω): Test Voltage 1000V±10% / 2500V±10%
2500V±10%: 200MΩ/20GΩ/200GΩ; ±(4%+2digits)
5000V±10%: 200MΩ/20GΩ/200GΩ; ±(4%+2digits)
Short Circuit Current: 1mA
Terminal Position: L . E, ACV G(750V)
AC Voltage(V): 750V ±(1.0%+6digits)
Input Impendance: 1MΩ
Frequency Response: (50~200) Hz

Function:
Alarm Function Red indicator light is illuminated
Low Battery Indication
LCD Backlight
Alarm Light Display
Alarm Buzzer
High Voltage Indication
Over Load Indication
Automatic Discharge
Test Voltage Vice Display
10MΩ Internal Resistance Test
Power Supply: 6 * 1.5V AA Alkaline Battery (Not Included)
Working Temperature/Humidity: 0~40℃, 30~85%RH
Storage Temperature/Humidity: 0~50℃, 30~85%RH
Item Size: Approx. 175 * 115 * 65mm
Item Weight: 503g
Package Size: 20.8 * 17.3 * 7cm
Package Weight: 753gRuoShui VC60D+ Digital Insulation Short Circuit Tester Resistance 2500V Megger Ohm Meter Megohmmeter. Package List:

  • 1 * Digital Insulation Tester
  • 1 * 10A Test Leads
  • 1 * Pair of Alligator Clip
  • 1 * Shoulder Strap
  • 1 * Use Manual (English)
